Product Description

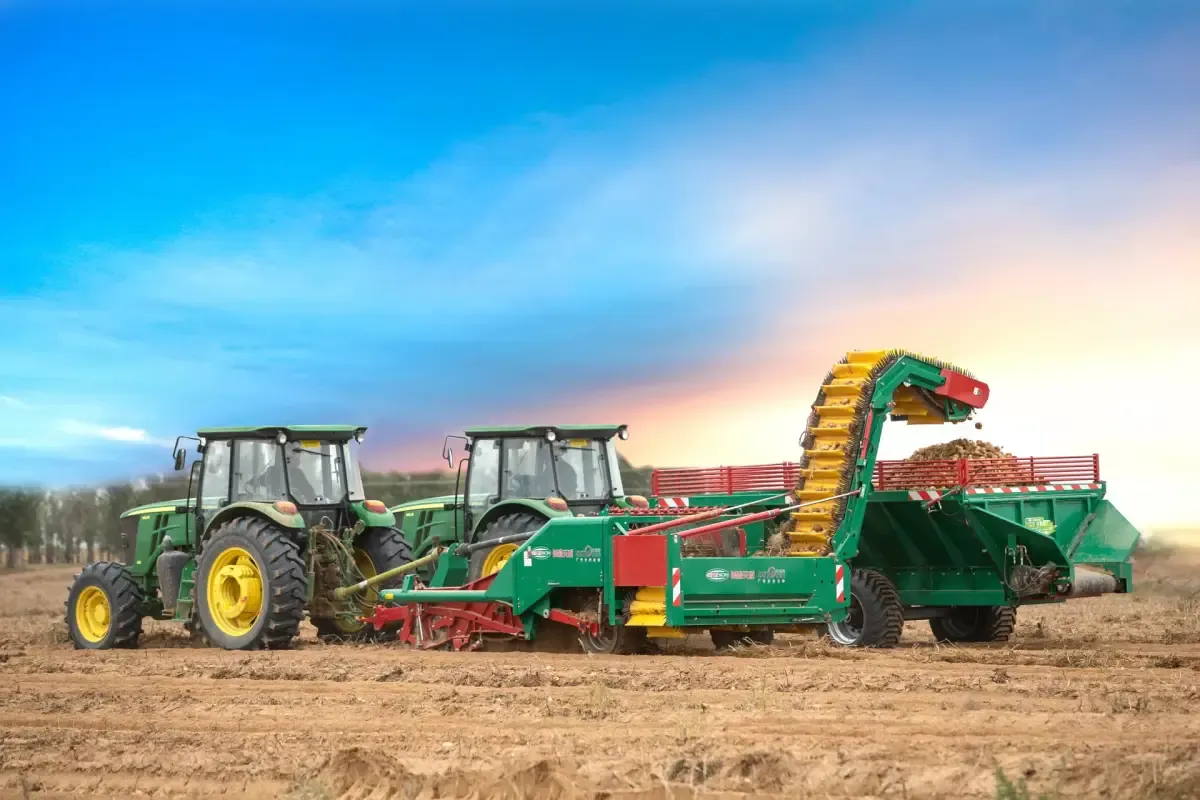

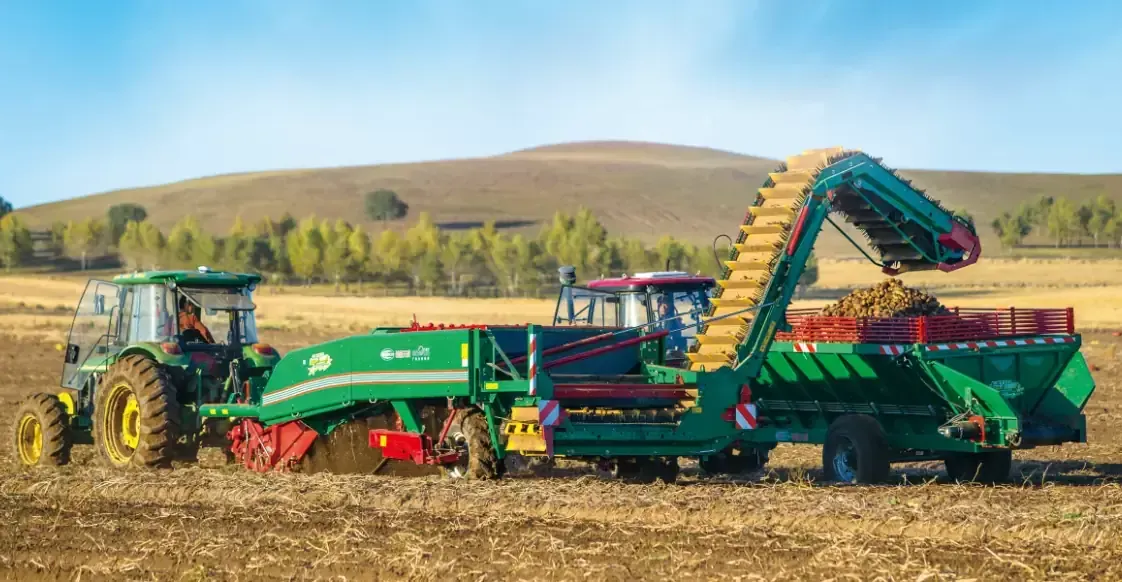

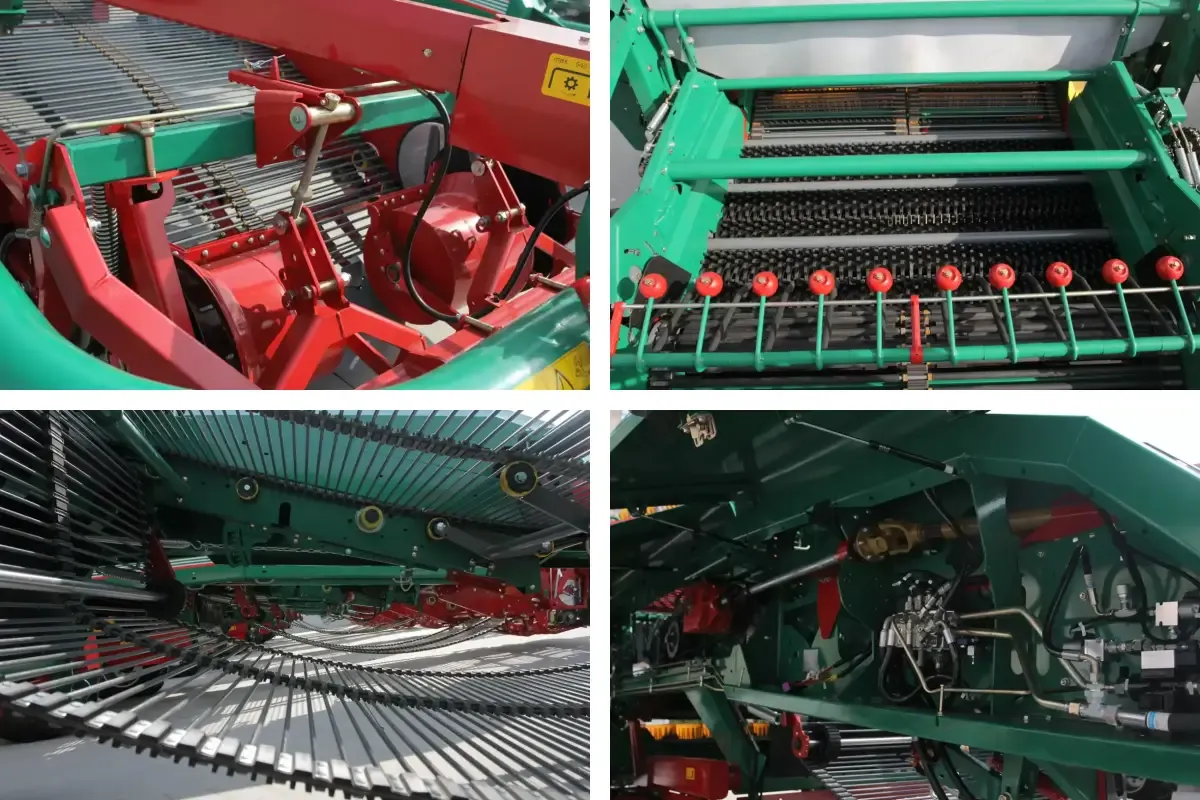

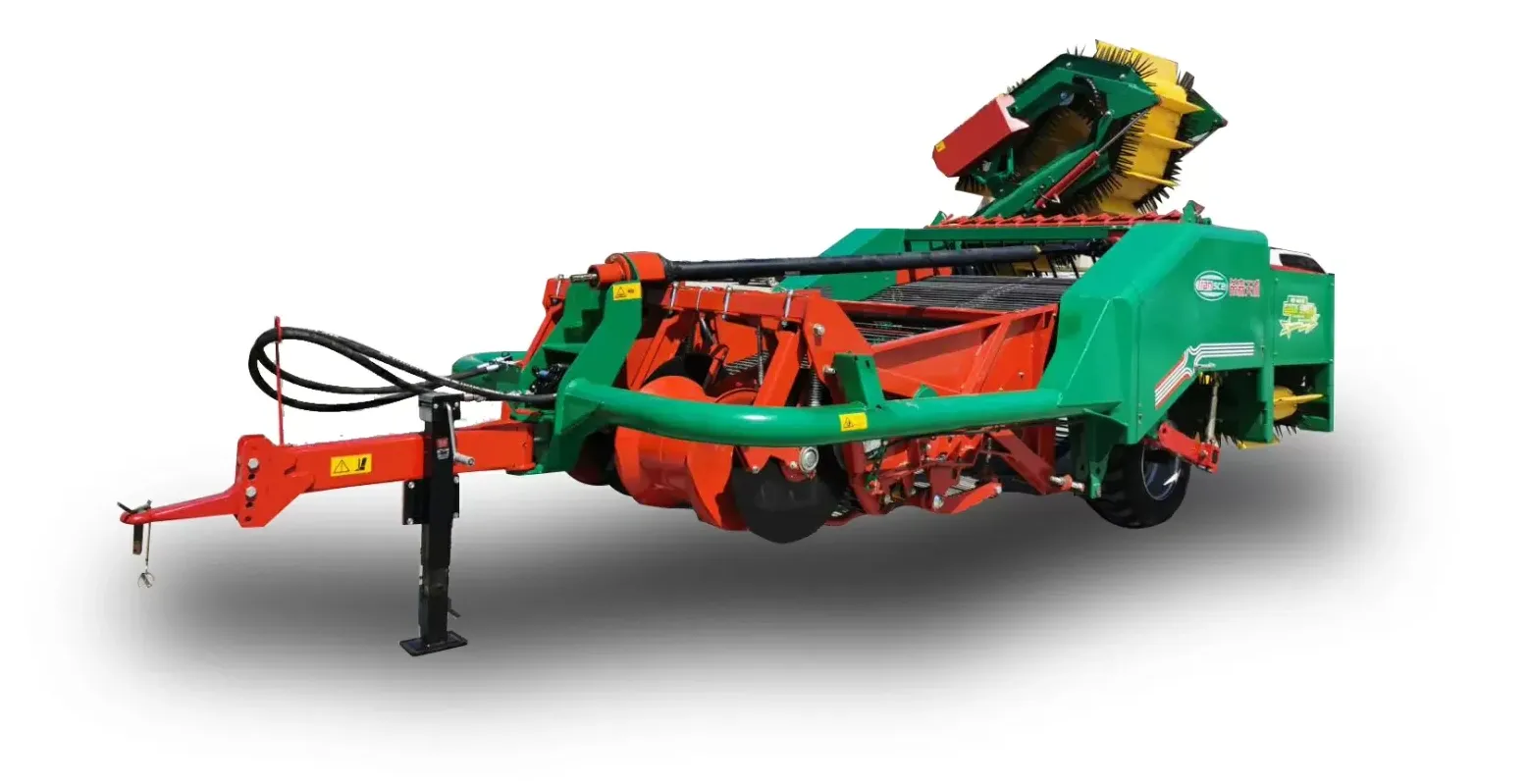

The potato combine harvester is a traction-type structure. When working, the tractor pulls the combine harvester, the digging shovel digs, and the contour-limiting wheel loosens the potato and soil and limits the digging depth. It is capable of working 2 rows at a time and covering two ridges in the field at a time, harvesting the crop quickly and easily with minimal labor and cost. The excavated potato and soil are separated from the potato and transported through the conveying screen. During the transportation of the potato, the potato vines are separated. After the separation of the potato, soil and potato vines, the clean potatoes enter the potato collection and transportation device, and the clean potatoes are transported to the transport vehicle through the potato collection and transportation device, and then the transport vehicle transports the harvested potatoes away.

Product Features
• Integrated Operation: Capable of completing various harvesting stages such as digging, separating, collecting, and bagging in a single operation.
• High Efficiency: Built to quickly process large areas of potato crops, significantly increasing harvesting efficiency.
• Labor-Saving: With a high level of automation, it reduces the manual labor required for traditional harvesting methods.
• Soil Separation Technology: Equipped with an effective system for separating potatoes from the soil.
• Low Damage Rate: Designed to minimize damage to potatoes, maintaining their marketability after harvesting.
• Adaptability: Can handle different soil types and farming conditions.

Technical Specification
| Model | 4UL-170Z | 4UL-170C |
|---|---|---|
| Linkage | Trailed | Trailed |
| Dimensions(mm) | 9700*3200*3400 | 6670*2680*2890 |
| Weight(kg) | 5960 | 3270 |
| Matched Power(ph) | 140-210 | 120-180 |
| Applicable Ridge Width(mm) | 900 | 900 |
| Working Rows | 2 ridges 2 rows | 2 |
| Working Width(mm) | 1700 | 1700 |
| Digging Depth(mm) | 150-300 | 150-300 |
| Excavating Type | Fixed combined shovel | Fixed combined shovel |
| Screen Width(mm) | 1660 | 1660 |
| Maximum Loading Height(mm) | 4000 | 2940 |
| Work Efficiency(mu/h) | ≥8 | ≥6 |
