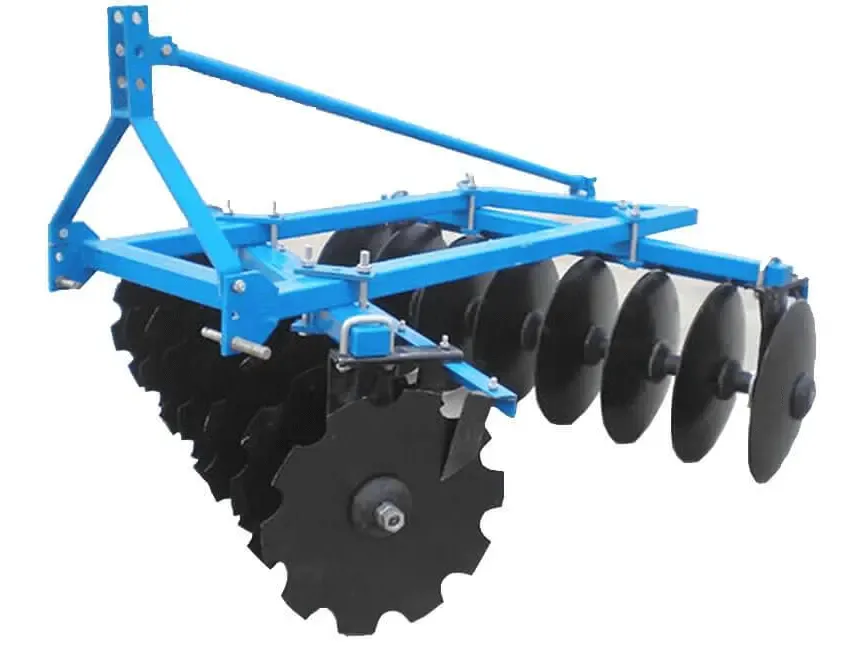

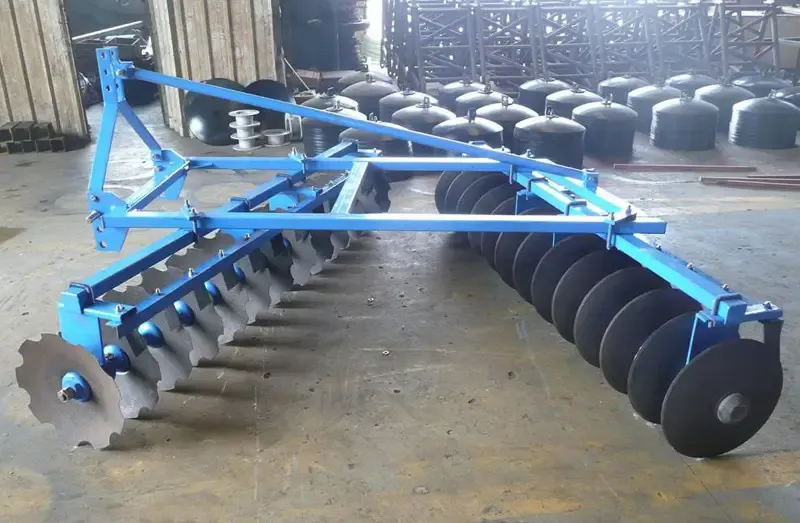

Mounted Offset Medium Disc Harrow
Mounted Offset Medium Disc Harrow

Mounted Offset Medium Disc Harrow

GET A INQUIRY

Product Description

The mounted offset medium disc harrow is an efficient and sturdy agricultural cultivator machinery, the front disc uses slotted disc blades, and the rear disc group uses flat disc blades. The rake is made of high-grade materials with good quality and long service life. The 1BJX series of medium-sized disc harrows can be used with tractors of different horsepower. Experience the epitome of efficiency and durability with our mounted medium disc harrow, the ultimate solution for achieving optimal soil preparation and maximizing agricultural productivity.

Product Features

• Offset Design: The offset design allows the harrow's width centerline to be significantly offset from the tractor's longitudinal axis, enabling it to work in areas inaccessible to the tractor, such as under tree canopies. • Adjustability: The angle of the disc harrow can be adjusted to suit different soil conditions and operational requirements. Increasing the angle can deepen the discs' penetration and enhance soil turning and pulverization effects, although it also increases resistance. • Efficient Operation: Suitable for large-scale field operations, the offset disc harrow has no un-tilled strips, resulting in high work efficiency and quick completion of large-area tillage tasks. • Strong Adaptability: It is suitable for various soil types and cultivation conditions, effectively working in both dry and wet soil. • Structural Stability: The mounted disc harrow typically features a reinforced frame design, enhancing operational stability and durability. • Easy Maintenance: Compared to trailed or semi-mounted disc harrows, the suspended disc harrow is easier to maintain and adjust. • Disc Design: The discs of the harrow are made of wear-resistant materials, and the concave design helps with soil turning and crushing. • Transportation Convenience: For transportation, the disc angle can be adjusted to zero degrees, facilitating road transport and reducing damage to the road surface. • Effective Soil Coverage: The disc harrow effectively covers the soil during operation, creating good conditions for seeding. These features make drag harrow an indispensable tool in agricultural production. Our company also has other disc plough of different models for sale, ensuring high quality and reasonable prices. Please feel free to send us an email with inquiries.

Technical Specification

Model1BJX-1.71BJX-2.01BJX-2.21BJX-2.41BJX-2.5
Dimensions(mm)1960*1880*13171980*2240*13171980*2470*13172780*2570*13402970*2680*1460
Weight(kg)400434463604700
Working Width(m)1.722.22.42.5
Working Depth(mm)140-180140-180140-180140-180140-180
Dia. of Disc(mm)560560560560560
Thickness of Disc44444
Disc Space(mm)230230230230230
Qty. of Disc(mm)1618202224
Productivity(ha/h)1.31.51.61.81.9
LinkageThree point- mountedThree point- mountedThree point- mountedThree point- mountedThree point- mounted
Matched Power(hp)25-3535-4540-5045-6055-60
