Product Description
Medium-Sized potato planter(2 ridges x 2 rows) is a mechanized potato planting machine suitable for medium-sized areas, and worked by 3 point hitch on the tractor. It has advanced features such as high complexity, high precision, and high adaptability. It can complete a series of operations such as ditching, planting, ridging, fertilizing, and spraying. It adopts advanced vibration and tension sowing unit technology, with low seed leakage rate and repeated sowing rate, high sowing accuracy, and precision planting unit and control planting depth technology.
Product Features

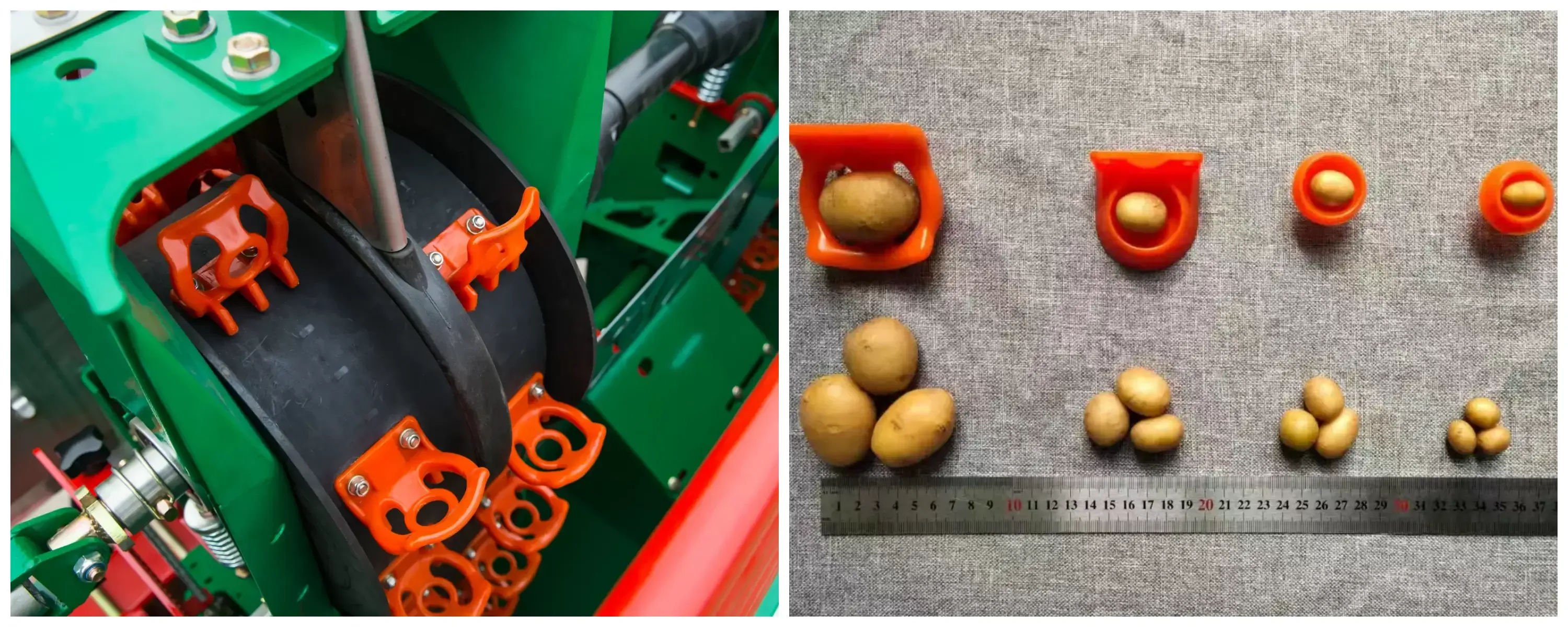

• Precision sowing: The "bowl-spoon" seeding device with independent intellectual property rights and the vibration, shaking and chain mechanism achieve precision sowing without manual intervention.
• Improved efficiency: The medium-sized potato planter is designed to efficiently plant potatoes on medium-sized fields, allowing farmers to cover more land in less time.
• Versatility: Medium-sized potato planters can be equipped with a range of additional features, such as fertilisation and pest control systems, to perform multiple tasks during the planting process, saving time and increasing crop yields.

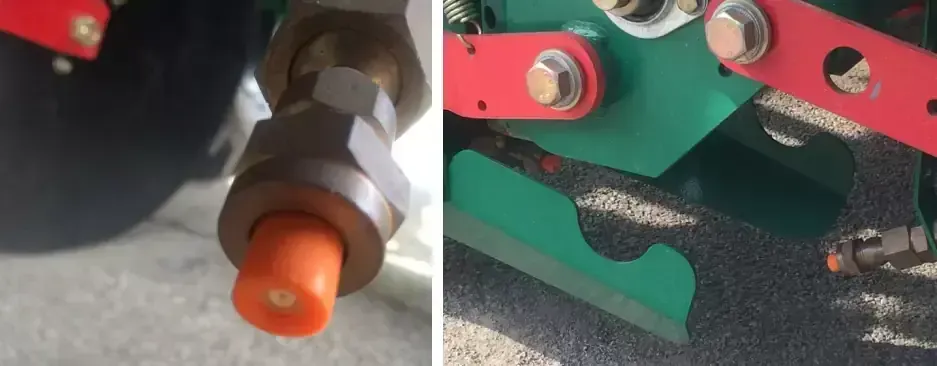

• Spraying System: Utilizes PTFE nozzles for higher atomization, improving coverage and pest protection efficiency.
Working Video
Loading
Technical Specification
| Model | SG-2CMX-2 |
|---|---|
| Dimension(mm) | 2384*1990*1840 |
| Weight(kg) | 1020 |
| Row Space(mm) | 900 |
| Working Width(mm) | 1800 |
| Working Rows | 2 Ridges * 2 Rows |
| Seed hopper(L) | 1000 |
| Fertilize hopper(L) | 300 |
| Pesticide hopper(L) | 350 |
| Linkage | Three point-linkage |
| Matched power(kw) | ≥45 |
