Product Description

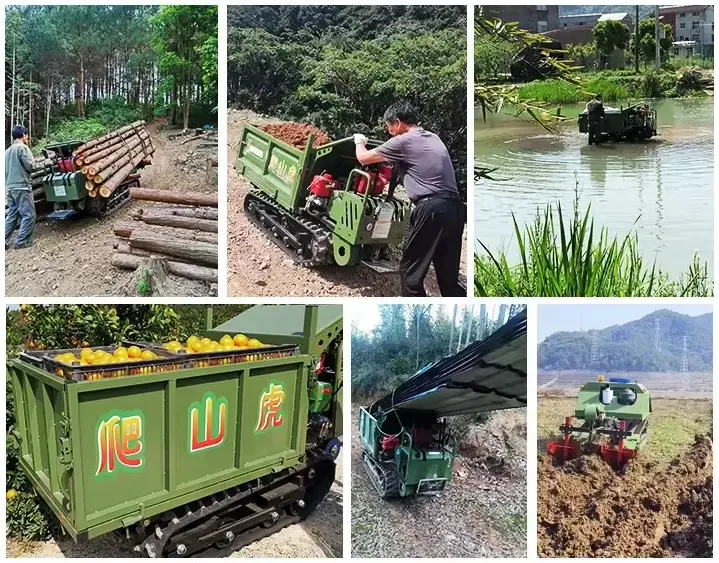

The professional transport vehicle is a heavy-duty, all-terrain multi-functional vehicle specially designed for farms, engineering, and forestry. Designed for traversing narrow fruit tree rows, steep slopes and uneven terrain, this vehicle improves the efficiency of transporting fruit, fertilizer, sand and wood while minimizing crop damage and labor costs.


Product Features
• Crawler transportation: It can meet the transportation needs of complex terrains such as muddy roads, fields, steep slopes, etc., and achieves a maximum climb of 40%.

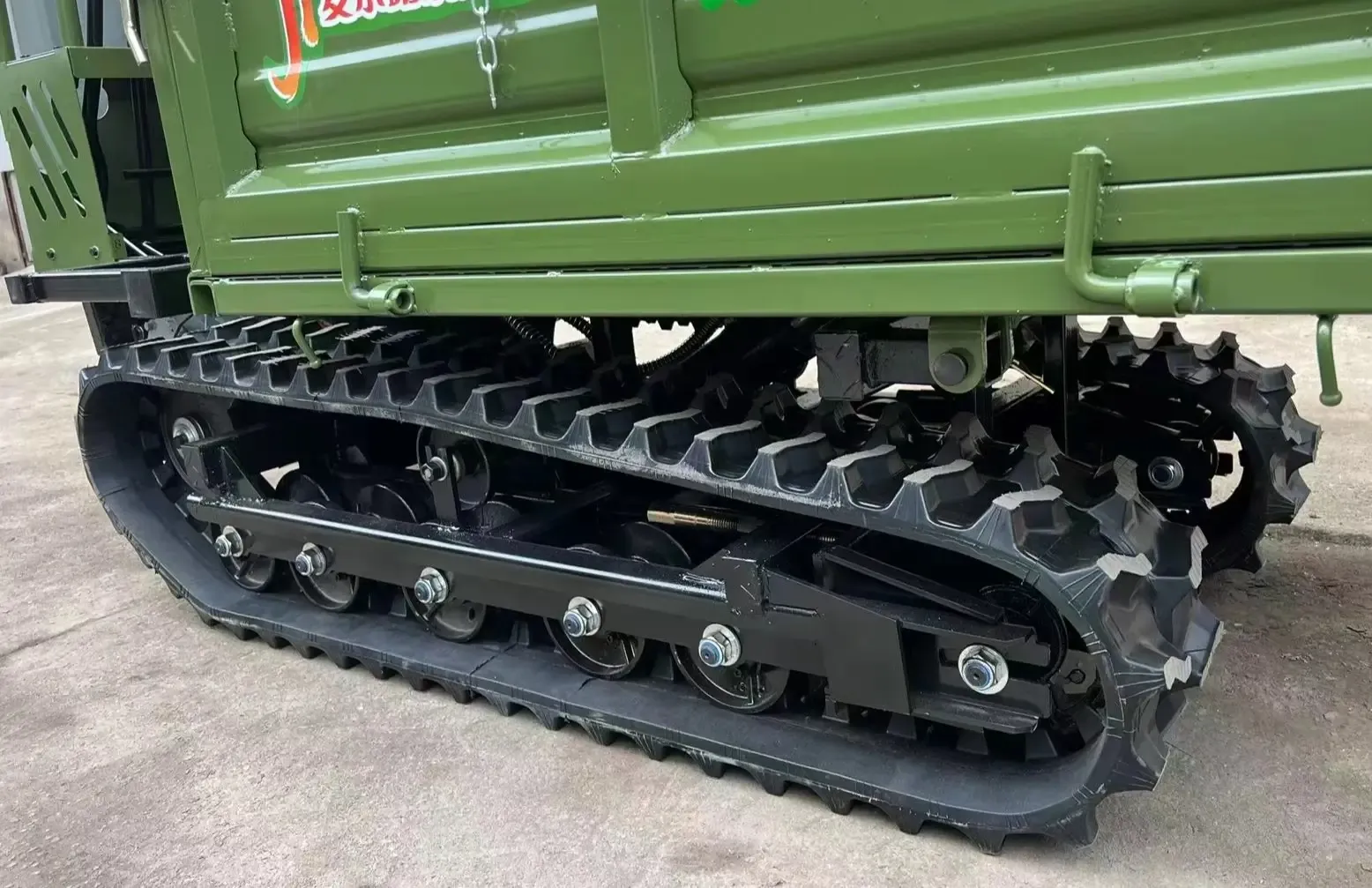

• High performance and low fuel consumption: Diesel power, strong carrying capacity and low fuel consumption. The crawler running mechanism with deep tooth twill structure has strong grip and good climbing performance.

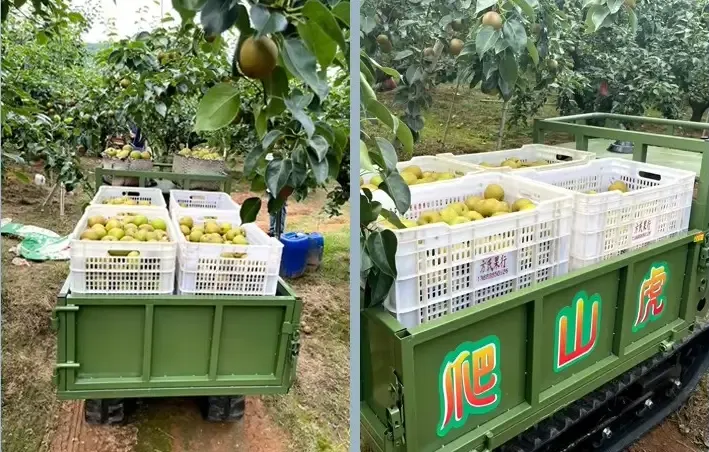

• Narrow body design: allows for seamless walking between dense orchard rows without damaging trees or vines.
• Modular integration: the cargo bed can be exchanged for a sprayer, fruit collector or trailer.
• Safe and reliable: the guide wheel and the load-bearing wheel are kept at the same level to prevent the head from lifting during use of the equipment.
• Strong and durable: The equipment uses 235 steel, which has good welding performance, high strength and rigidity. These features ensure the stability and durability of the entire machine, allowing it to operate for long periods of time under harsh working conditions.


Working Video

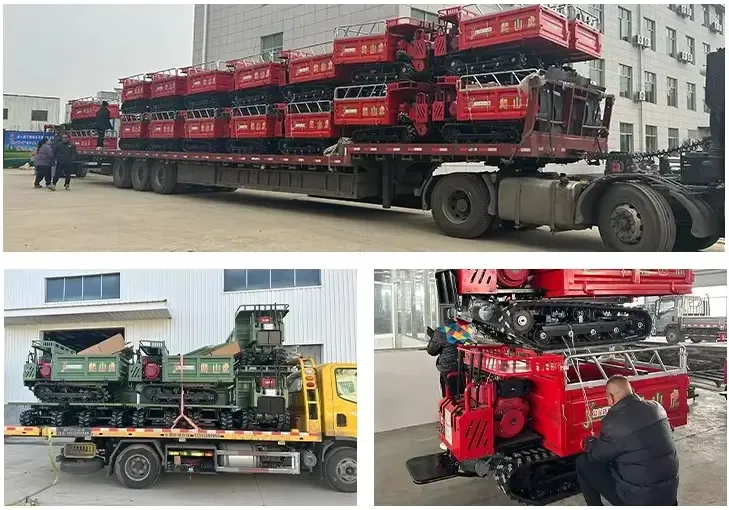

Loading
Technical Specification
| Model | 7TY-700(800-5) | 7BY-1000-81CZ(1000-6) |
|---|---|---|
| Dimension(mm) | 2200*1020*1300 | 2700*1250*1430 |
| Engine | Diesel 192 | Diesel 1105 |
| Gear Box | Ductile Iron 180 | Ductile Iron 180 |
| Track Specification(mm) | 230*72*46 | 250*72*53 |
| Track Material | Rubber Track | Rubber Track |
| Walking Part Width(m) | 0.84m | 1.06m |
| Bearing Wheel | Steel 5*150 | Steel 5*180 |

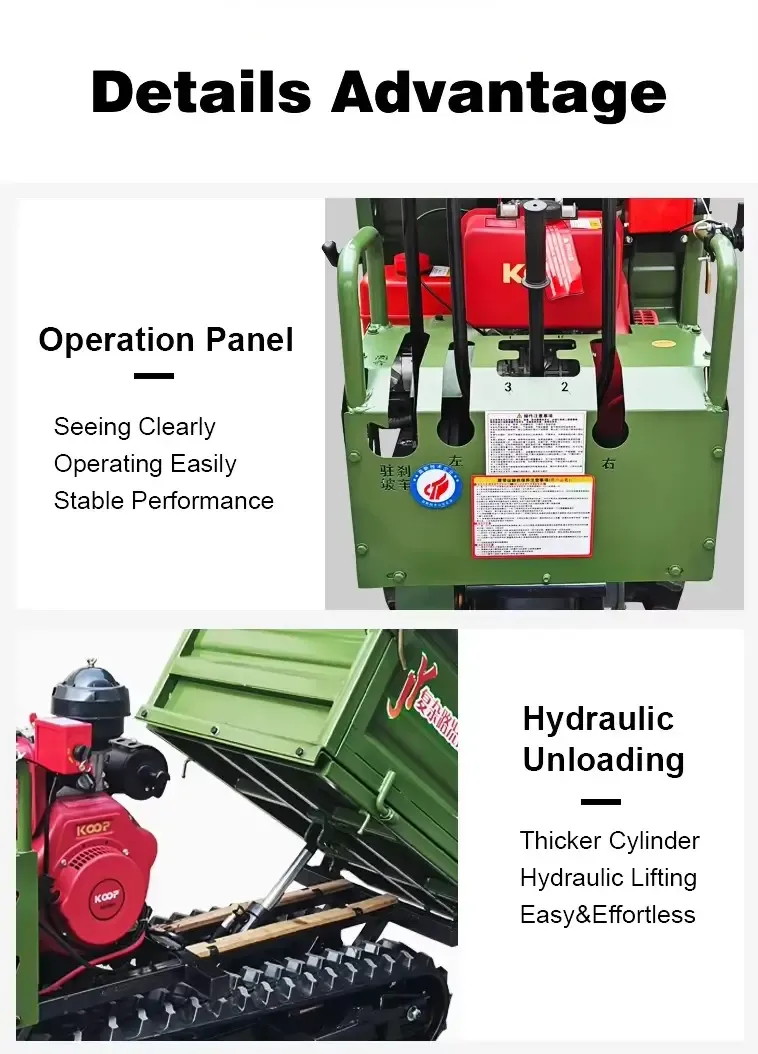

| Dump Function | Hydraulic unload | Hydraulic unload |
| Start Up | Electric Start | Electric Start |
| Clutch Form | Tie Rod | Tie Rod |
| Max.Load Capacity | 1.5Ton | 2Ton |
| Machine Weight(kg) | 636 kg | 1000kg |
| Min.Turning Radius | 1m | 1.5m |
| Start Gear | Three Forward One Reverse | Three Forward One Reverse |
| Ground Height to Container | 470mm | 530mm |
| Steering Gear | Pull Rod Type | Pull Rod Type |
| Steering Mode | Clutch Brake Pad | Clutch Brake Pad |
