Product Description

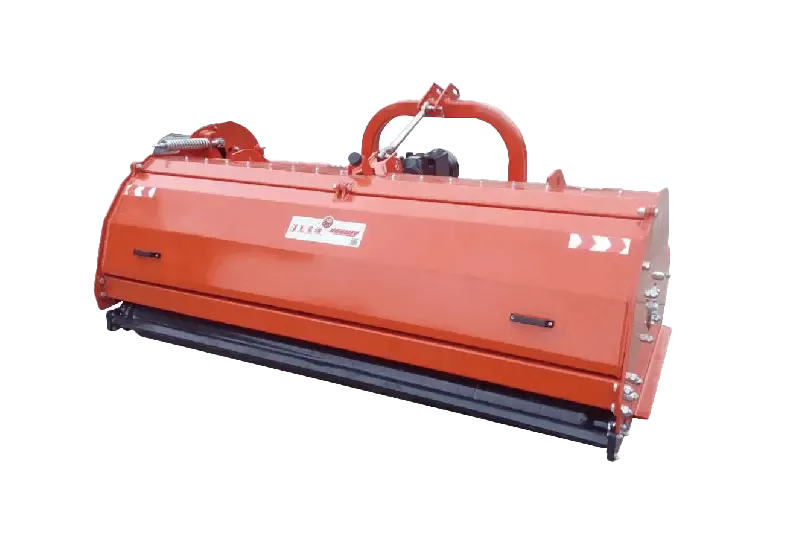

The heavy-duty straw crushing and returning machine adopts European design concepts and is combined with China's actual operating conditions. The structure is more reliable and the crushing effect is better.
Comes with support wheels and adjustable rear baffle to adapt to various working environments.
Enhanced design of transmission system. High reliability, suitable for various complex working conditions.
The lateral movement adjustment structure allows users to easily adjust the working range.
Multiple sets of fixed knives provide better crushing effect.
Technical Specification
| Model | 1JH-200 | 1JH-230 | 1JH-260 |
|---|---|---|---|
| Dimensions(mm) | 2254*1445*1060 | 2554*1445*1060 | 2854*1445*1060 |
| Weight(kg) | 940 | 1050 | 1160 |
| Blade Type | Y-shaped knife + straight knife | Y-shaped knife + straight knife | Y-shaped knife + straight knife |
| Number of Blades | 66 | 72 | 78 |
| Working Width(mm) | 2000 | 2300 | 2600 |
| Adjustable Tailgate | Include | Include | Include |
| Transmission Type | Side belt drive | Side belt drive | Side belt drive |
| Number of Drive Belts | 5 | 5 | 5 |
| Applicable Horse Power(hp) | 70-100 | 80-100 | 90-120 |
